Explosion-Proof Fixed Lens Camera
Overview
Introduction SWGJ offers a comprehensive range of explosion-proof surveillance solutions, strictly engineered for Zone 1 and Zone 2 hazardous environments . This 2MP/4MP Bullet Camera is crafted from premium 304 stainless steel, designed to resist corrosion in onshore, offshore, and industrial sectors . Whether for oil & gas refineries, chemical processing plants, or marine applications, this system ensures 24/7 monitoring reliability where safety is paramount.
Product List
Key Features
Superior Imaging: Equipped with a 1/2.7″ Progressive Scan CMOS sensor, delivering sharp 1920×1080 resolution at 25fps for clear identification of details
Certified Protection: Meets global explosion-proof standards with Ex db IIC T6 Gb and Ex tb IIIC T80°C Db ratings , housed in a rugged IP68-rated enclosure that is fully waterproof and dustproof .
24/7 Day/Night Performance: Features an ICR infrared filter and powerful IR LEDs with a range of up to 50 meters, ensuring visibility even in total darkness (0 Lux with IR) .
Smart Efficiency: Supports H.265/H.264 compression and ROI (Region of Interest) encoding to optimize bandwidth and storage usage without compromising image quality .
Flexible Installation: Available with multiple fixed lens options (2.8mm to 8mm) to suit various field-of-view requirements (up to 107.8°) . Supports both DC 12V and PoE (802.3af) for versatile power deployment .
Explosion-Proof Structure Design
Parameter
| Feature | 2MP Model | 4MP Model |
|---|---|---|
| Max Resolution | 1920 × 1080 @ 25fps | 2560 × 1440 @ 25fps |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON) | Color: 0.005 Lux @(F1.2, AGC ON) |
| Night Vision Mode | Infrared Only Range: Up to 50m |
Dual Light (IR + White Light) Range: Up to 30m (Supports Anti-exposure) |
| Lens Options | 2.8mm, 4mm, 6mm, 8mm | 4mm, 6mm, 8mm, 12mm |
| Field of View (H) | 107.8° (2.8mm) ~ 40.9° (8mm) | 75.3° (4mm) ~ 23.4° (12mm) |
| Audio | N/A | Built-in Microphone |
| Camera & Image | |
|---|---|
| Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 s ~ 1/100,000 s |
| WDR | Digital WDR |
| Image Enhancement | BLC, 3D DNR, HLC, Defog |
| Video & Network | |
| Compression | H.265 / H.264 / MJPEG |
| Protocols | TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IGMP, QoS, IPv6, UDP |
| API Compatibility | ONVIF, ISAPI, SDK, GB28181 |
| Smart Alarm | Motion Detection, Exception/Tampering |
| General & Interface | |
| Material |
Standard: 304 Stainless Steel Optional: 316 Stainless Steel (Customizable upon request) |
| Protection Level | IP68 (Waterproof & Dustproof) |
| Explosion-Proof Marking | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
| Power Supply | DC 12V ± 25% / PoE (802.3af) |
| Working Environment | -30°C ~ 60°C, Humidity < 95% (Non-condensing) |
| Dimensions | Approx. 202mm × 113mm × 174mm (See drawing for details) |
Application
Environmental aspects of refining, oil extraction, gas extraction, chemical industry, fireworks production, grain processing and storage, gas stations, etc.

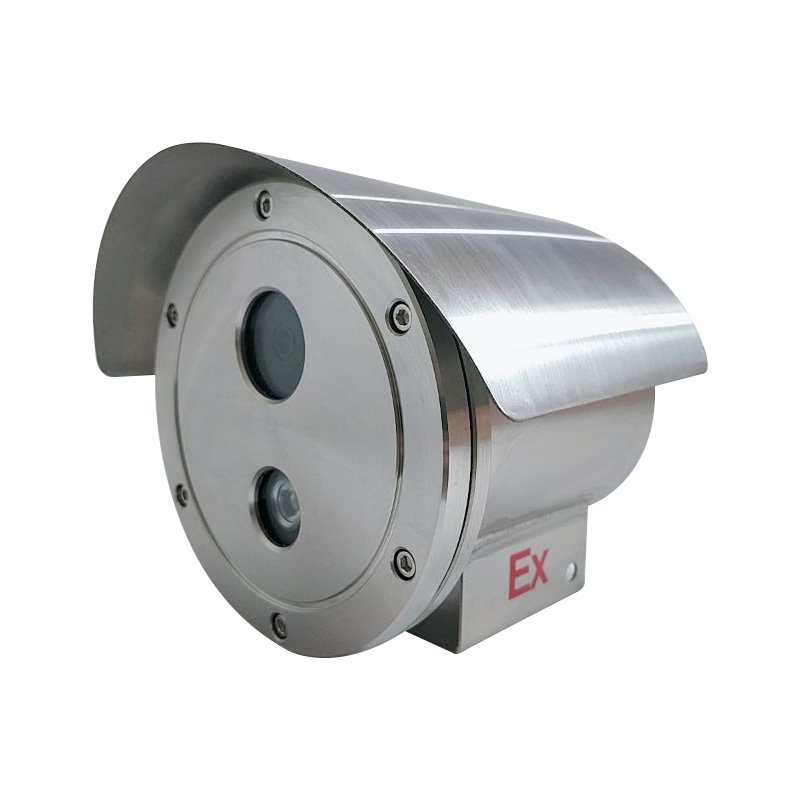

The SWGJ Explosion Proof Full-Color Bullet Camera revolutionizes nighttime surveillance in hazardous industries. Unlike traditional cameras that switch to black-and-white in the dark, this advanced series features a state-of-the-art F1.0 super-aperture lens and a high-sensitivity sensor, allowing it to capture vivid color images 24/7, even in ultra-low light conditions (0.0005 Lux).
Encased in a rugged 304 stainless steel housing (with 316 option), it combines laboratory-level imaging with industrial-grade protection. Whether monitoring dimly lit chemical storage yards or offshore platforms at night, this camera ensures no detail—like the color of a vehicle or a warning label—is missed.
24/7 Full-Color Technology (F1.0 Aperture) Equipped with an F1.0 super aperture lens that collects 4x more light than standard cameras. Combined with a supplemental soft light, it delivers bright, colorful video in total darkness, ensuring critical color information is always recorded.
Smart Perimeter Protection Built-in intelligent analytics support Line Crossing (Tripwire) and Intrusion Detection. The camera automatically filters out false alarms and triggers alerts only when a person or vehicle breaches a defined zone.
Robust Explosion-Proof Design Certified with Ex db IIC T6 Gb markings. The anti-corrosion stainless steel body (IP68) withstands explosive gases, dust, and harsh weather, making it ideal for oil refineries, gas stations, and chemical plants.
Flexible Power & Installation Supports PoE (802.3af) for single-cable installation or standard DC 12V. The compact bullet design with an adjustable bracket allows for easy mounting on walls, poles, or ceilings.

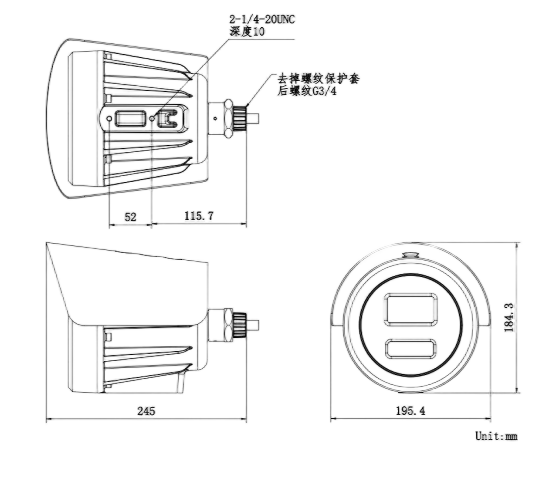

Explosion-Proof Structure Design
Parameter
| Brand | SWGJ |
|---|---|
| Product Series | Explosion Proof Full-Color Bullet Camera |
| Explosion Protection | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Material | 304 Stainless Steel (Standard); 316 SS (Customizable) |
| Sensor & Resolution |
2MP Model: 1/2.7" CMOS (1920×1080) 4MP Model: 1/1.8" CMOS (2560×1440) *Best Low Light Performance |
| Lens Aperture | F1.0 (Super Large Aperture) |
| Lens Options | 2.8mm (105°) / 4mm (88°) / 6mm (55°) / 8mm (38°) |
| Night Vision | 24/7 Color Imaging (0.0005 Lux) + Soft Light Supplement (30m) |
| Smart Analytics | Line Crossing, Intrusion Detection, Motion Detection |
| WDR Technology | 120dB True WDR |
| Video Compression | H.265 / H.264 |
| Power Input | PoE (802.3af) or DC 12V |
| Protection Level | IP68 Waterproof |

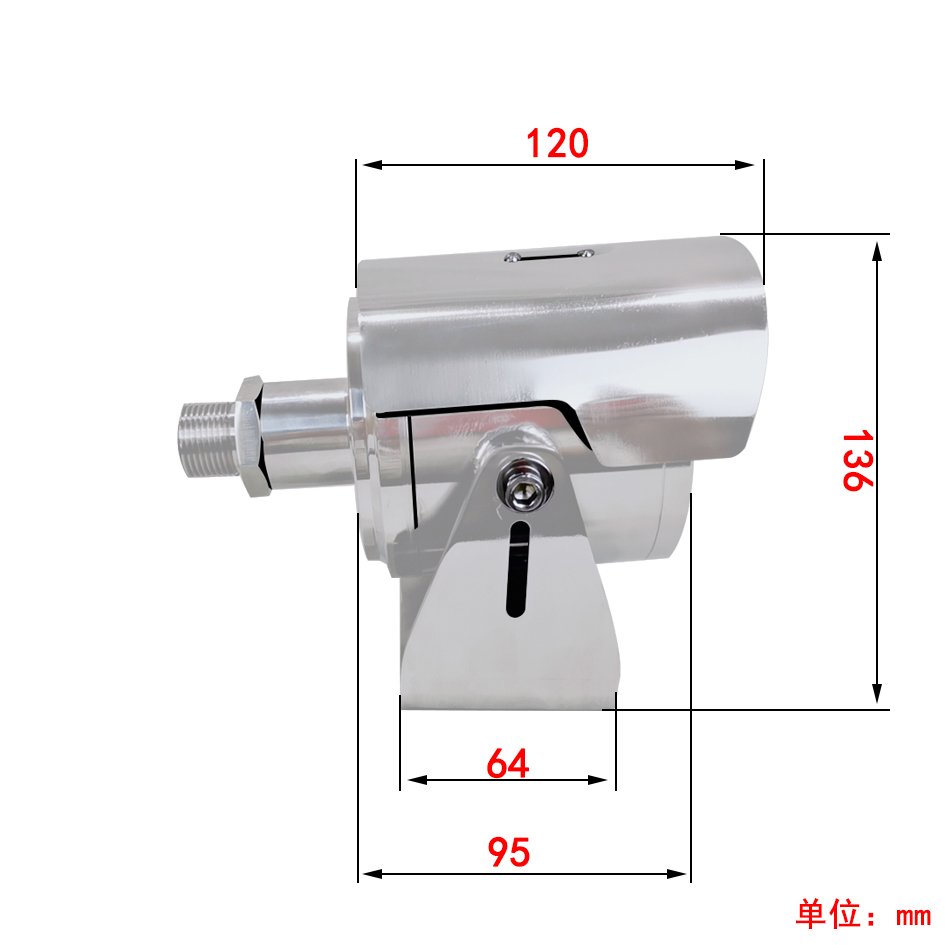

| Dimensions | 120mm × 136mm × 95mm (approx.) |
Application
Environmental aspects of refining, oil extraction, gas extraction, chemical industry, fireworks production, grain processing and storage, gas stations, etc.

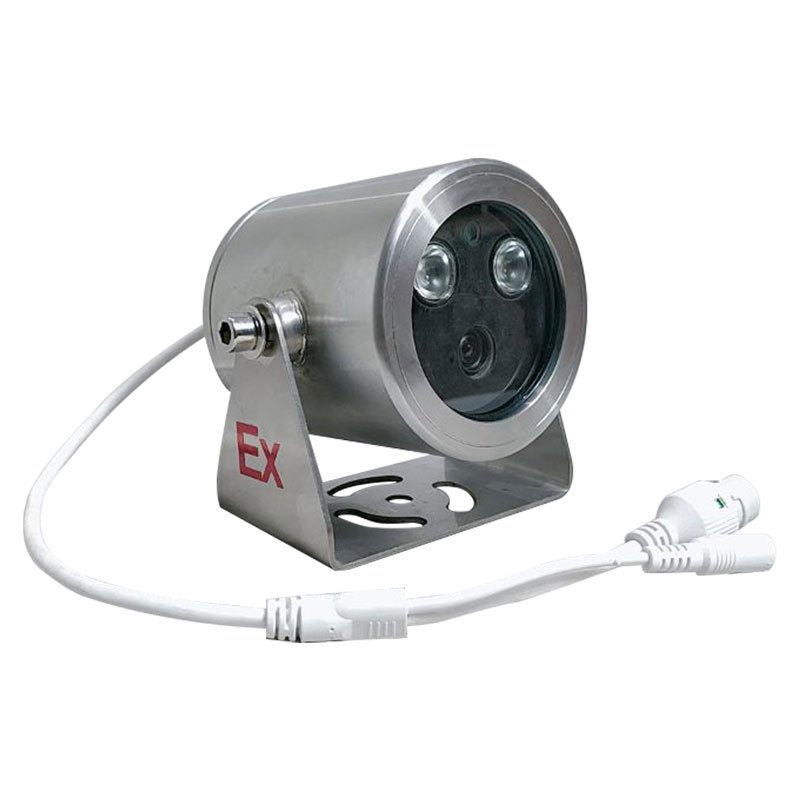

The SWGJ Explosion Proof Compact Bullet Camera Series offers versatile surveillance solutions tailored for hazardous environments. Whether you need the crystal-clear night vision of our 4MP Full-Color (F1.0) model or the cost-effective reliability of our 2MP IR model, this series delivers uncompromising performance.
Housed in a compact, corrosion-resistant 304 stainless steel body (IP68), these cameras are engineered for space-constrained installations such as vehicles, drilling skids, and narrow industrial corridors. They provide 24/7 monitoring capabilities, ensuring safety in explosive atmospheres containing flammable gases and dust.
Selectable Night Vision Technology
Pro Version (4MP): Features an industry-leading F1.0 Super Aperture lens and High-Sensitivity Sensor. It captures vivid color images even in total darkness (0.0005 Lux) with the help of warm supplemental lighting.
Standard Version (2MP): Equipped with high-efficiency Infrared (IR) LEDs, providing clear black-and-white visibility up to 50 meters in 0 Lux conditions.
Compact & Rugged Design Certified with Ex db IIC T6 Gb markings. The streamlined stainless steel housing is smaller than traditional bullet cameras, making it ideal for mobile units, trucks, and machinery where vibration resistance and space are critical.
Intelligent Detection Built-in smart analytics support Line Crossing and Intrusion Detection. The system minimizes false alarms and provides real-time alerts for unauthorized access in restricted zones.
Flexible Installation Supports PoE (802.3af), DC 12V, and even AC 220V (optional), offering maximum flexibility for diverse infrastructure requirements.

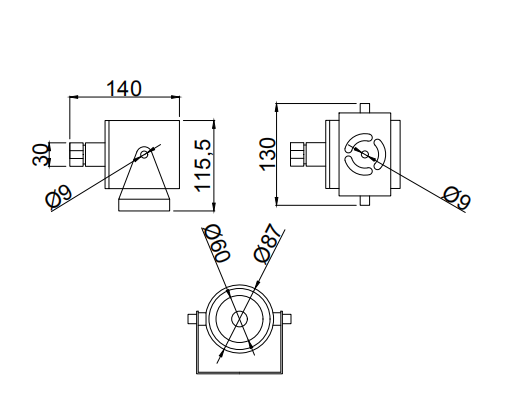

Explosion-Proof Structure Design
Parameter
| Feature | Pro Model (4MP Full-Color) | Standard Model (2MP IR) |
|---|---|---|
| Resolution | 4MP (2560×1440) | 2MP (1920×1080) |
| Night Vision Tech | ColorVu (F1.0 Aperture) | Standard IR (Infrared) |
| Sensor Size | 1/1.8" (Large Sensor) | 1/2.7" (Standard Sensor) |
| Min. Illumination | 0.0005 Lux (Ultra Low Light) | 0.01 Lux |
| Illuminator Type | Warm Soft Light | Infrared LED |
| Explosion Proof | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db (Zone 1 & 2) | |
| Housing | 304 Stainless Steel (IP68 Rated) | |
| Power Input | PoE (802.3af) / DC 12V / AC 220V | |
Application
Environmental aspects of refining, oil extraction, gas extraction, chemical industry, fireworks production, grain processing and storage, gas stations, etc.
The SWGJ Explosion Proof Bullet Camera Series delivers a comprehensive range of surveillance solutions for hazardous industries. From cost-effective Fixed Lens models for general monitoring, to flexible Motorized Varifocal units for precise focusing, and advanced Active Deterrence cameras that proactively warn off intruders with sound and light.
All models are encased in rugged 304 stainless steel housings (standard) with 316 stainless steel upgrades available for offshore applications. Certified for Zone 1 and Zone 2, they ensure 24/7 reliability in refineries, chemical plants, and oil depots.
Key Features：
1. Proactive Defense: Acousto-Optic Alarm (AI Series) Equipped with built-in White Light Strobes and Loudspeakers, the AI Alert model detects intruders using Deep Learning algorithms. Once a line crossing or intrusion is detected, it triggers a sound and light alarm to deter threats immediately. It also supports Two-Way Audio for real-time communication.
2. Flexible Viewing: Motorized Varifocal Lens (Zoom Series) The 4MP Varifocal model features a 2.7-12mm motorized zoom lens. Installers can remotely adjust the focal length and focus via the software, eliminating the need to open the explosion-proof housing for manual adjustments—saving time and ensuring the perfect field of view.
3. Standard Reliability: High Efficiency IR (Fixed Series) For standard surveillance, our 2MP Fixed Lens model offers excellent value with a 50-meter IR range for clear night vision. It supports versatile power options (AC220V/DC12V/PoE), making it easy to integrate into existing infrastructure.
Explosion-Proof Structure Design
Parameter
| Feature | Standard Model (2MP Fixed) |
Zoom Model (4MP Varifocal) |
AI Alert Model (Active Deterrence) |
|---|---|---|---|
| Resolution | 2MP (1080P) | 4MP (1440P) | 4MP (1440P) |
| Lens Type | Fixed Lens | 2.7-12mm Motorized | Fixed Lens |
| Night Vision | IR (50m) | IR (50m) | White Light (Color) + IR |
| Audio & Alarm | N/A | Audio/Alarm I/O | Built-in Mic/Speaker + Strobe |
| Smart Analytics | Basic Motion | Standard Smart Events | Human/Vehicle Filtering |
| Explosion Proof | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db (Zone 1 & 2) | ||
| Power Input | AC220V/DC12V/PoE | AC220V/DC12V/PoE | DC12V/PoE |
Application
Environmental aspects of refining, oil extraction, gas extraction, chemical industry, fireworks production, grain processing and storage, gas stations, etc.
